FS-60C Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer 100-240V

Model FS-60C
Voltage 100-240V
Plug type(Optional)US plug
Color orange
Applicable optical fiber SM(G.652&G.657), MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber types
Splicing loss 0.02dB(SM),O.OldB (MM) 0.04dB (DS/NZDS) Return loss Over60dB
Typical splicing duration 9 seconds
Typical heating duration 26 seconds (configurable heating time and adjustable heating temperature )
Optical fiber alignment Precise alignment, fiber core alignment, cladding alignment
Optical fiber diameter Cladding diameter 80-150um, coating layer diameter 100-1000um
Cutting length Coating layer below 250um: 8~ 16mm; coating layer 250-1000 um: 16mm Tension test Standard 2N
Optical fiber clamp Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for SC and other connectors for a variety of FTTx optical fiber and cable. Amplification factor 300 times (X axis or Y axis)
Heat shrink bush 60mm,40mm and a series of miniature bush
Display 5.0 inches TFT color LCD display Reversible, convenient for bi-directional operation External interface USB interface, convenient for data download and software upgrade

Splicing mode 17 groups of operation modes Heating mode 9 groups of operation modes Splicing loss storage 5000 latest splicing results are stored in the built-in storage.
Built-in battery Supports continuous splicing and heating for not less than 200 times
Power supply The built-in lithium battery 11.8V supplies the power, charging time$3.5h; External adapter, input AC100-240V50/60HZ, outputDC13.5V/4.81A
Power saving 15% of the power of the lithium battery can be saved in a typical environment. Working environment Temperature:-10~+50t), Humidity : <95%RH (no condensation),
Working altitude: 0~5000m; Max. wind speed: 15m/s Lighting Convenient for optical fiber installation in the evening Size 20.5*14*12.3cm/8.1*5.5*4.8in
Weight Approx.6910g/243.7oz

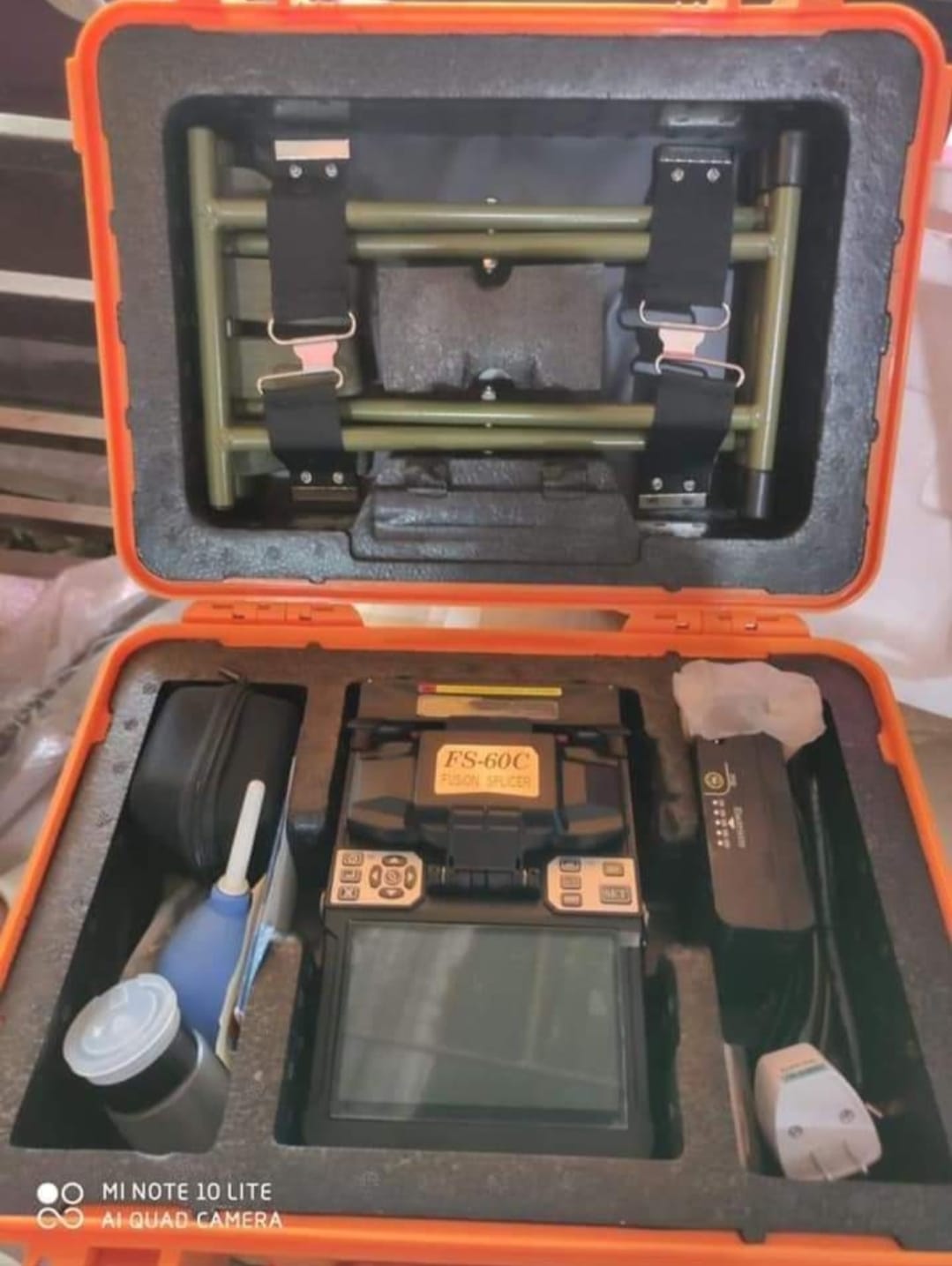

✨Package list:
1 x Fusion Splicer
1 x Fiber Cleaver
1 x Fiber Stripper
1 x Rubber-insulated Wire Stripping Pliers
1 x Seat
1 x Brush
1 x Tweezers
1 x Dust Blower Ball
1 x Bottle
1 x Power Adapter
1 x Power cable
1 x Length Fixing Stripping Device
1 x Cold Cutting Frame
1 x Carrying Strap
1 x Transit Case
1 x User manual
2 x wrench
